CX Series

CX-2305(18)

  • Power supply: AC220V, frequency: 50Hz;
  • Input power: 680VA;
  • Maximum carrying capacity: 135KG;
  • Headrest telescopic range: 120mm;
  • Backrest backward range: 115~180 degrees;
  • The highest height of cushion from the ground: 780mm;
  • The lowest height of cushion from the ground: 400mm.

Contact Us
Quick Inquiry

1. Base

Steel paste with 13mm thickness.

2.Built-in or External Floor Box

3.PU Cushion

4.New Type Front Cover

5. Tool Tray

Down-mounted tool tray with 24V X-film viewer.

6. Assistant Tray

7. Ceramic Cuspdor

Ceramic cuspidor, with 180 degrees rotation.

8. LED Operation Lamp With Sensor

9. Motors

24V DC motors from China.

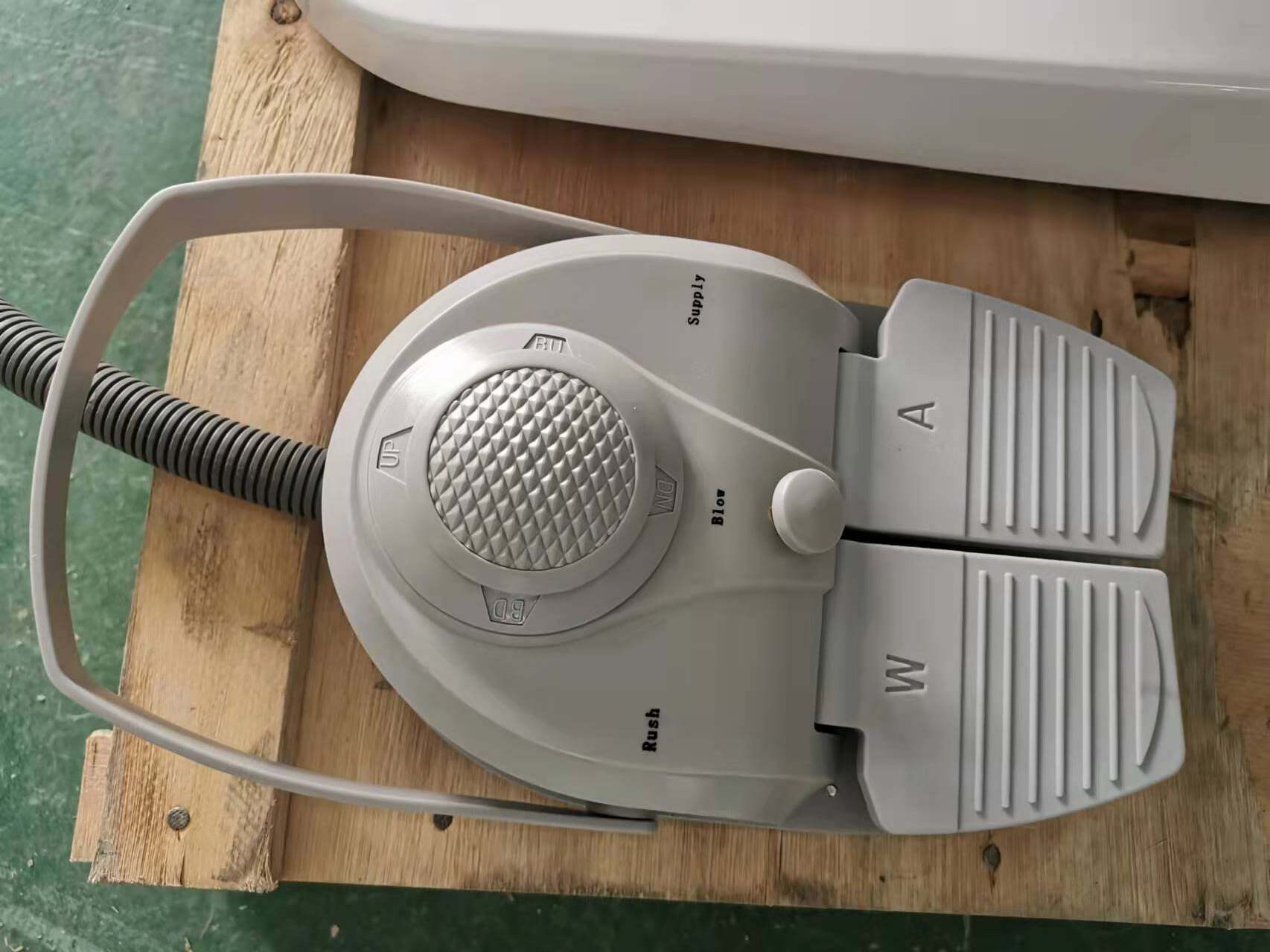

10. Foot Pedal

11. Tubes

PVC air and water tubes.

12. Dentist Stool

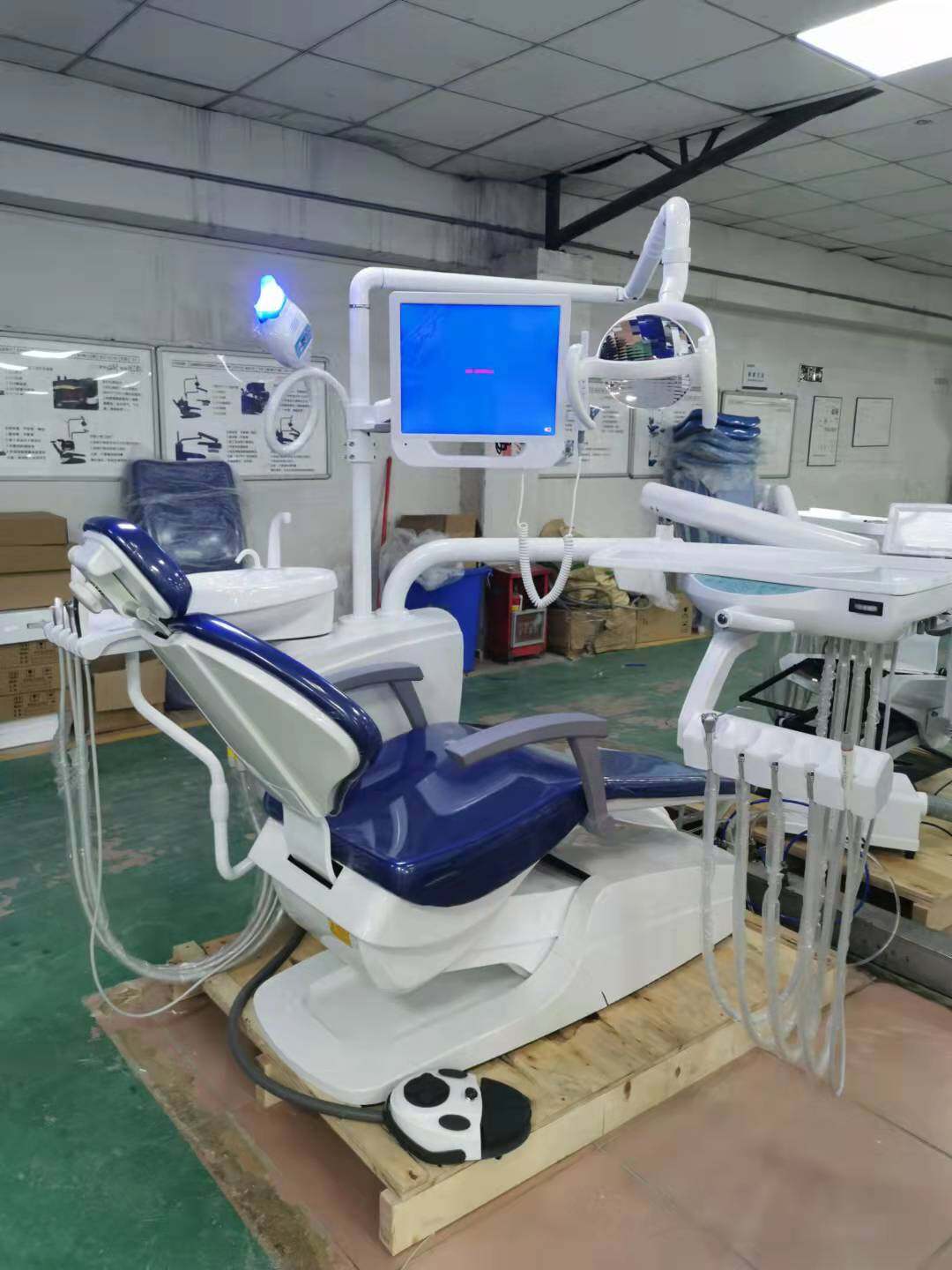

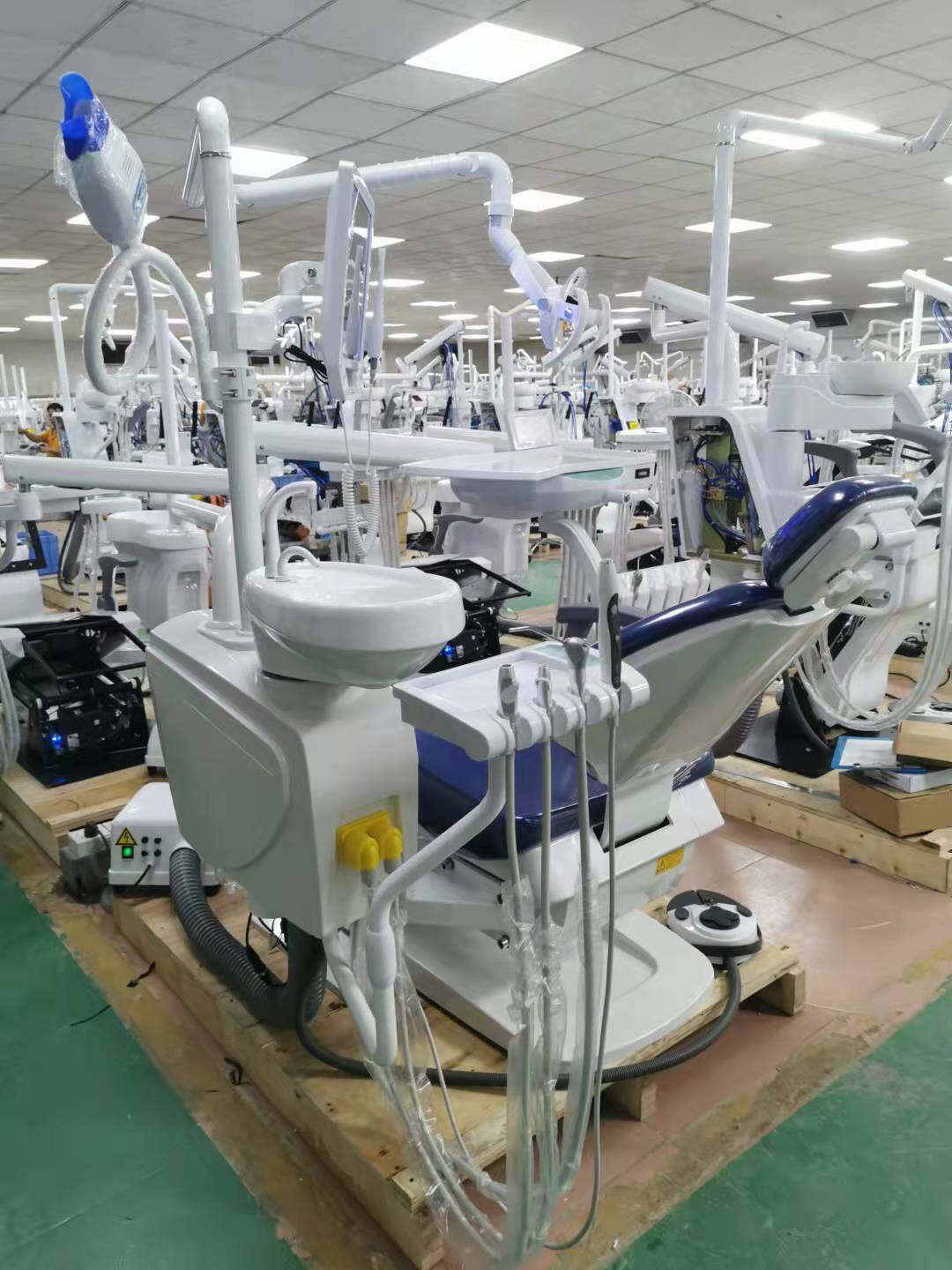

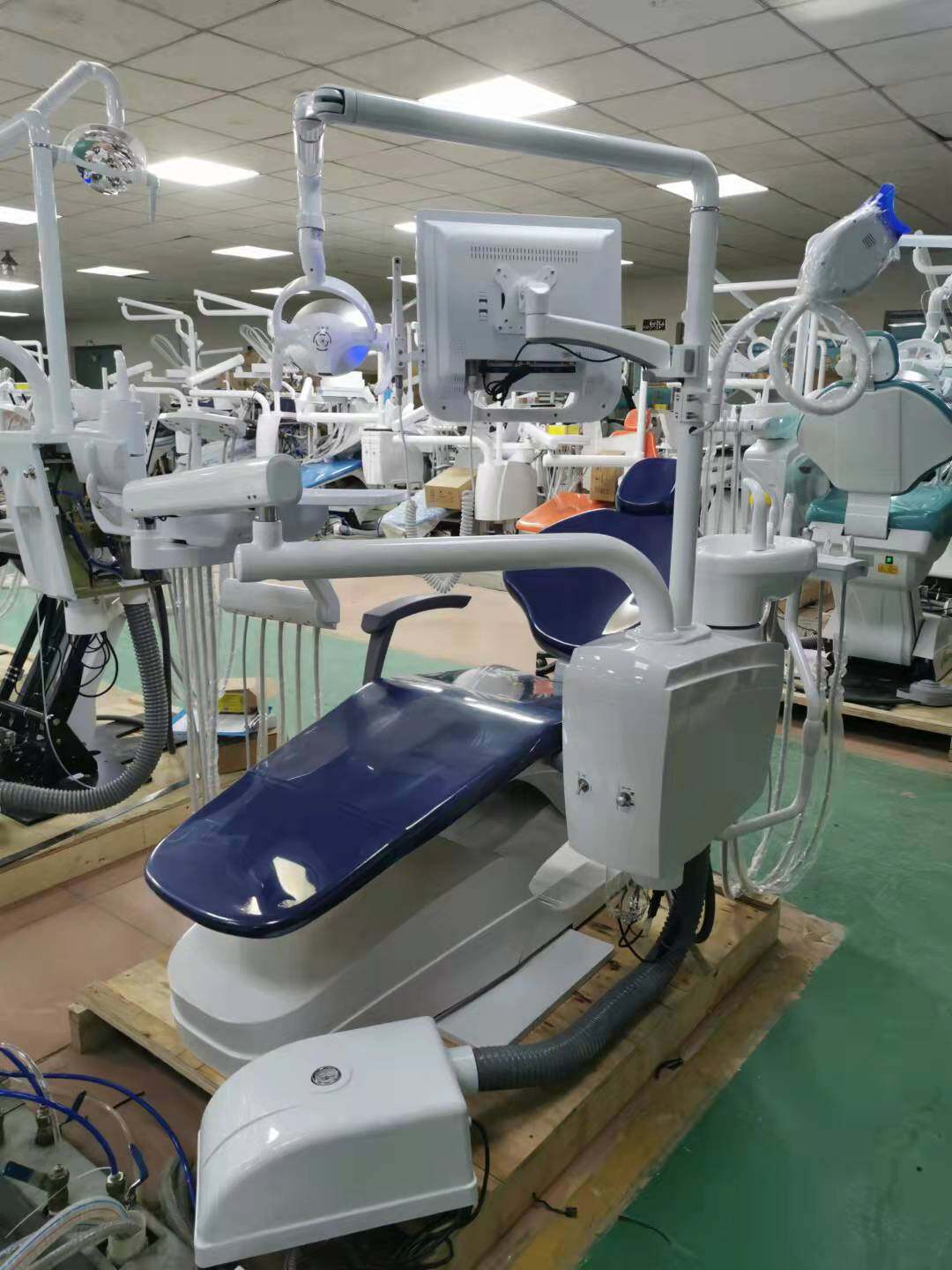

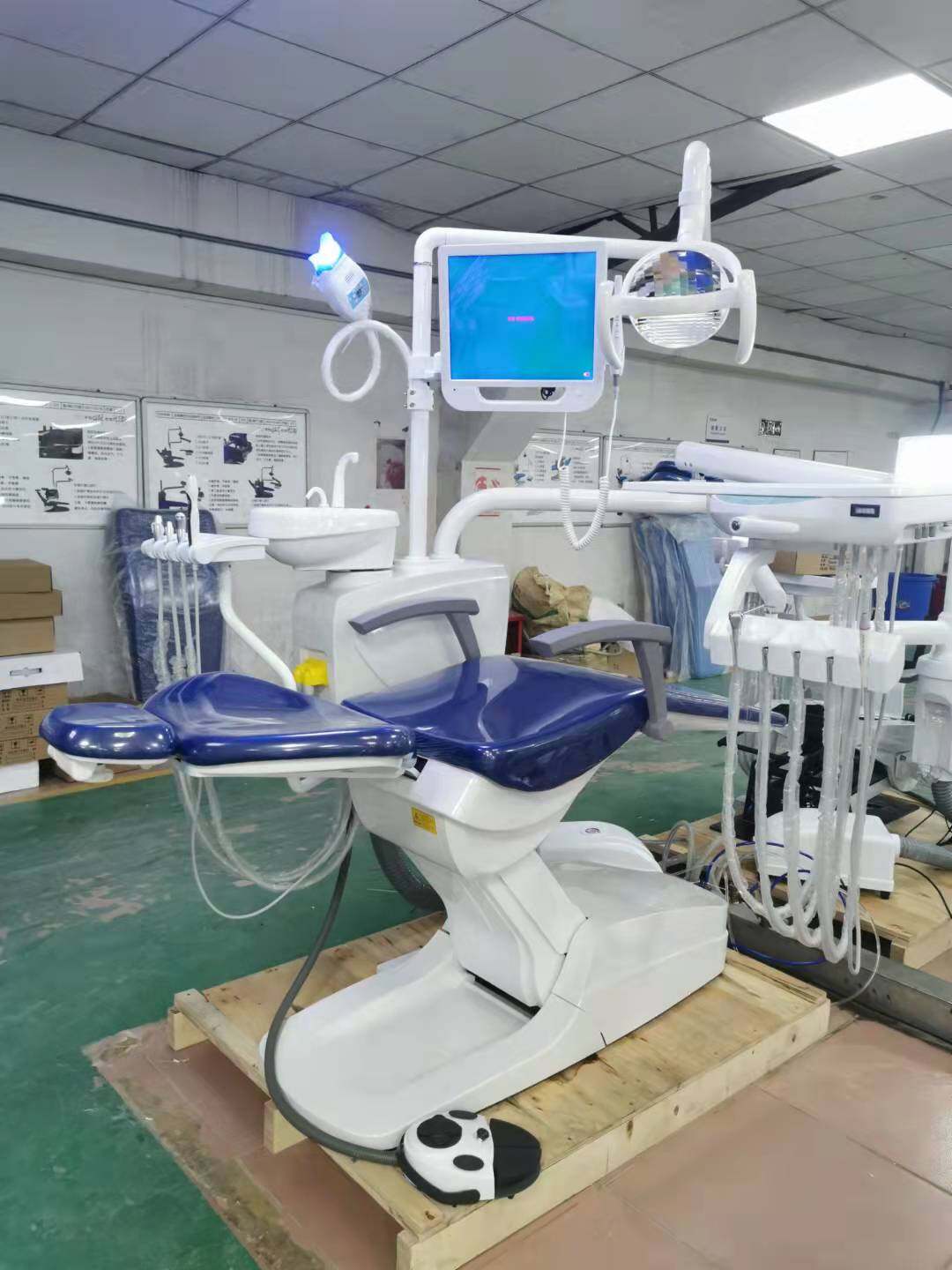

13. Complete Production Photos

Standard Specification:

4 hole high-speed handpiece tubing with connector 2 sets;
4 hole low-speed handpiece tubing with connector 1 set;
3-way syringe (cold and hot) 2 piece;
Adjustable headrest 1 set;
Double armrest 1 set;
Down-mounted tool tray  1 set;
5-posistion for handpiece,syringe and scaler  1set;
Suction and saliva ejector 1 set each;
LED operation lamp with sensor CX-201  1 set;
 Lamp arm 1set;
Build-in model Lcd X-film viewer 1 set;
24V DC motors 1 set;
Assistant tray 1 set;
Water purified system 1 set;
Water heating system 1 set;
Water bottle 600ml 1 pcs;
Auto water supply and flush cuspidor system 1 set each;
Ceramic cuspidor with 180-degrees rotation 1 set;
Multi-function foot pedal CX-107 1 set;
Dentist stool 1set;
PU cushion 1 set;
Solenoid valve  2 pcs;
ABS plastic covers 1 set;
PVC air and water tubes 1set;
All kinds of copper valves 1set;
Chair without safety system;
Chair without linked movement chair frame;
Packing size: 142*100*120CM;

Gross Weight: 230KG.
