- Power supply: AC220V, frequency: 50Hz;
- Input power: 680VA;
- Maximum carrying capacity: 135KG;
- Headrest telescopic range: 120mm;
- Backrest backward range: 115~180 degrees;
- The highest height of cushion from the ground: 780mm;
- The lowest height of cushion from the ground: 400mm.
1. Base
Steel paste with 13mm thickness.
2.Built-in or External Floor Box

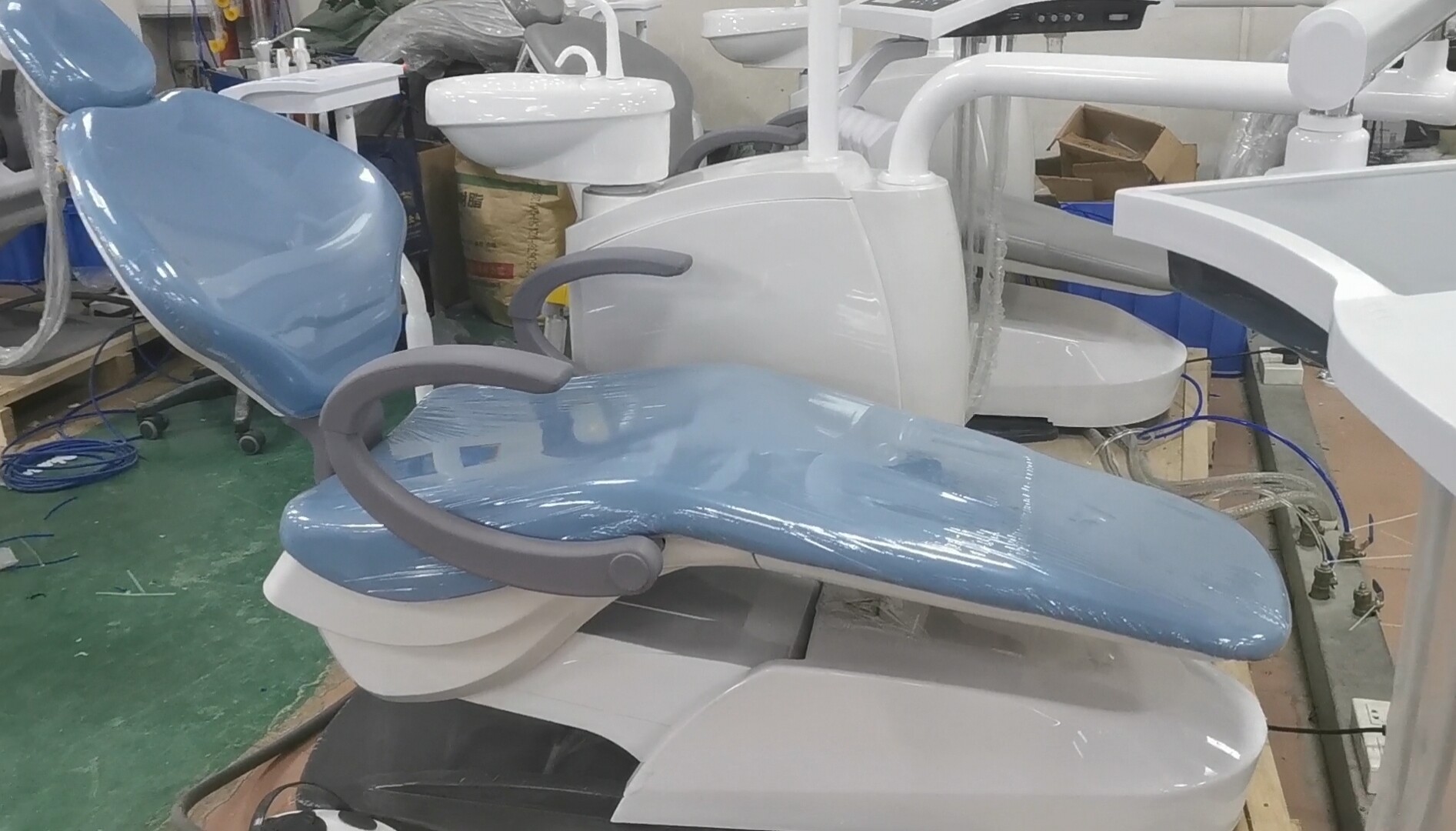

3.PU Cushion
4.New Type Front Cover

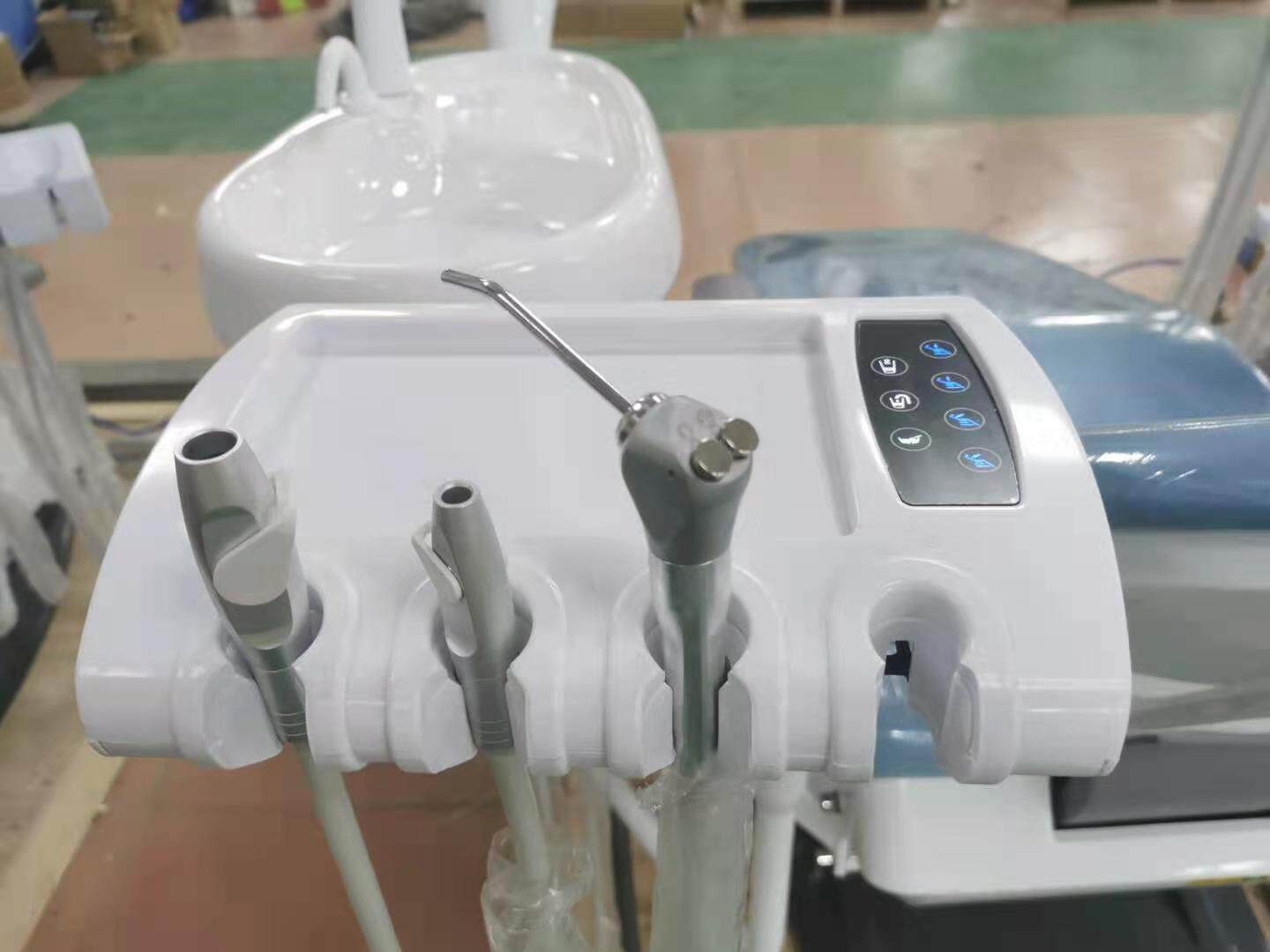

5. Tool Tray
Down-mounted tool tray with 24V X-film viewer.

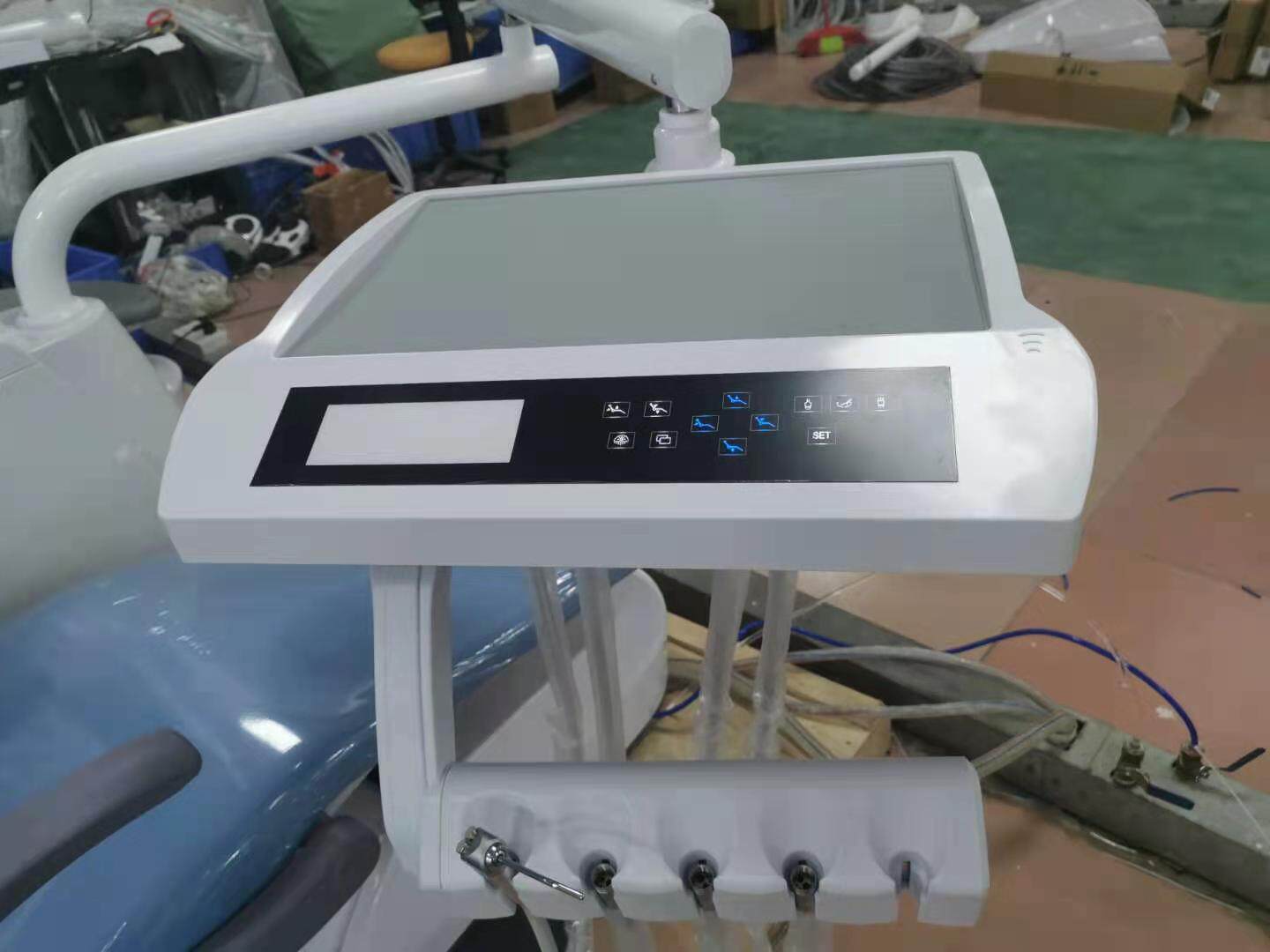

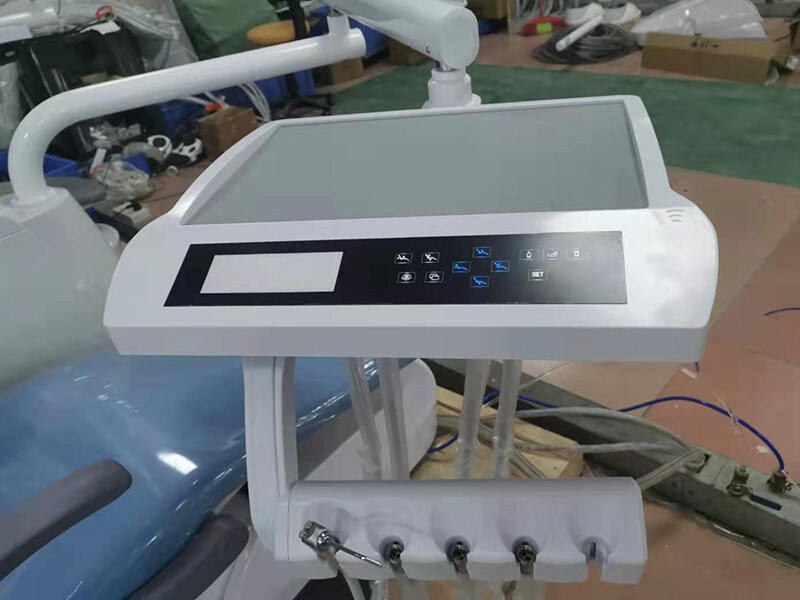

6. Assistant Tray
Intelligent key-touch assistant control system.
7. Ceramic Cuspdor
Silicone pad which is autoclavable, its maximum bearing temperature is 135℃.

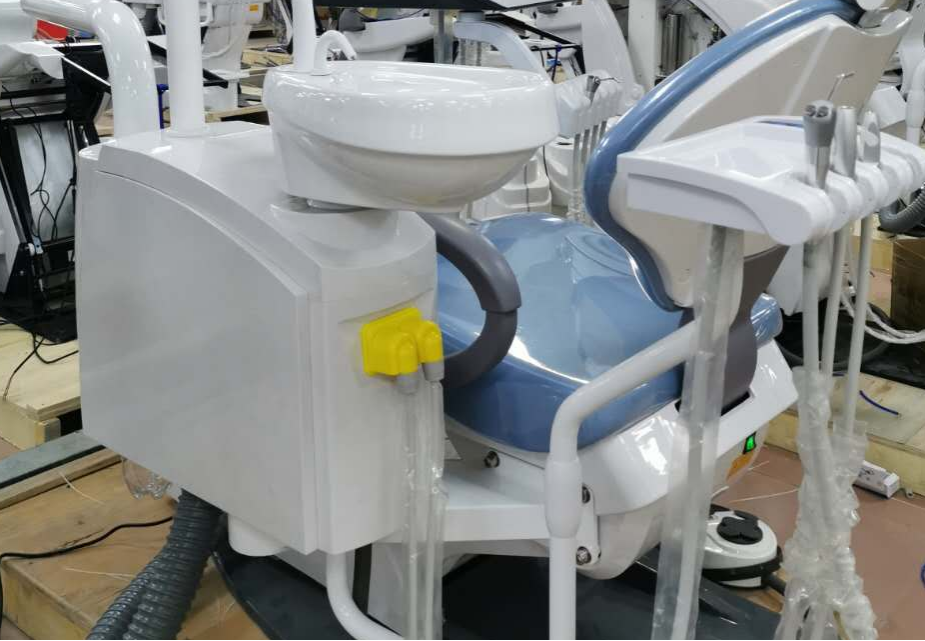

8. Unit Box
9.Ceramic Cuspdor
Ceramic cuspidor, with 180 degrees rotation.
10.PU Bending Plate With 26mm Thickness

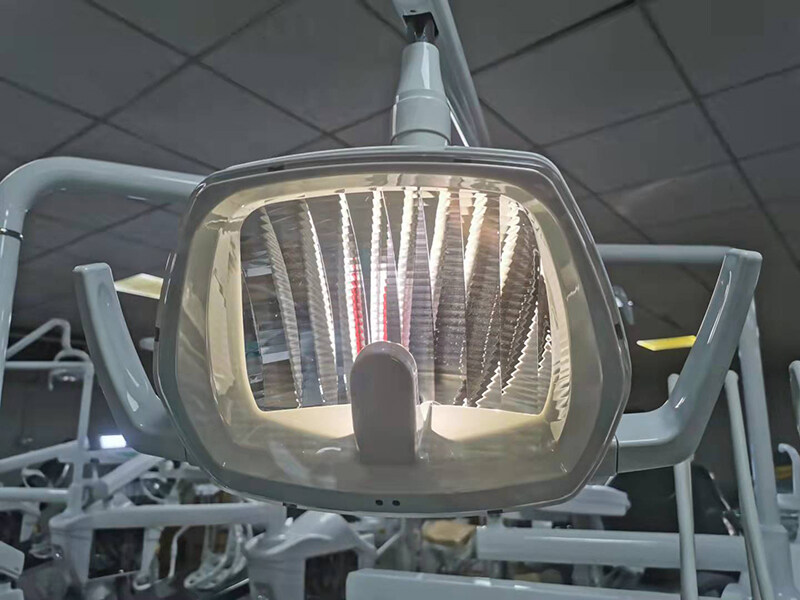

11. LED Operation Lamp
New sensor LED lamp,the handle can be removed for disinfection and the lamp is with 360-degrees rotation.
12. Motors
24V DC motors from China.
13. Tubes
PVC air and water tubes.
14. Foot Pedal
Mutil-function foot pedal
15. Dentist Stool
Big side dentist stool.

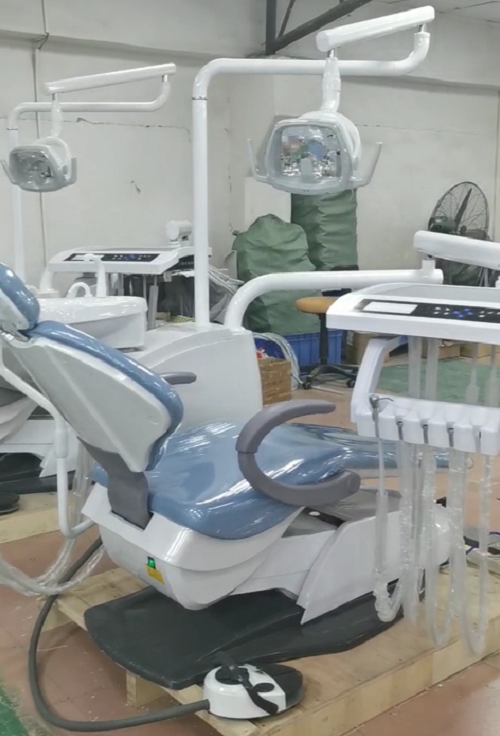

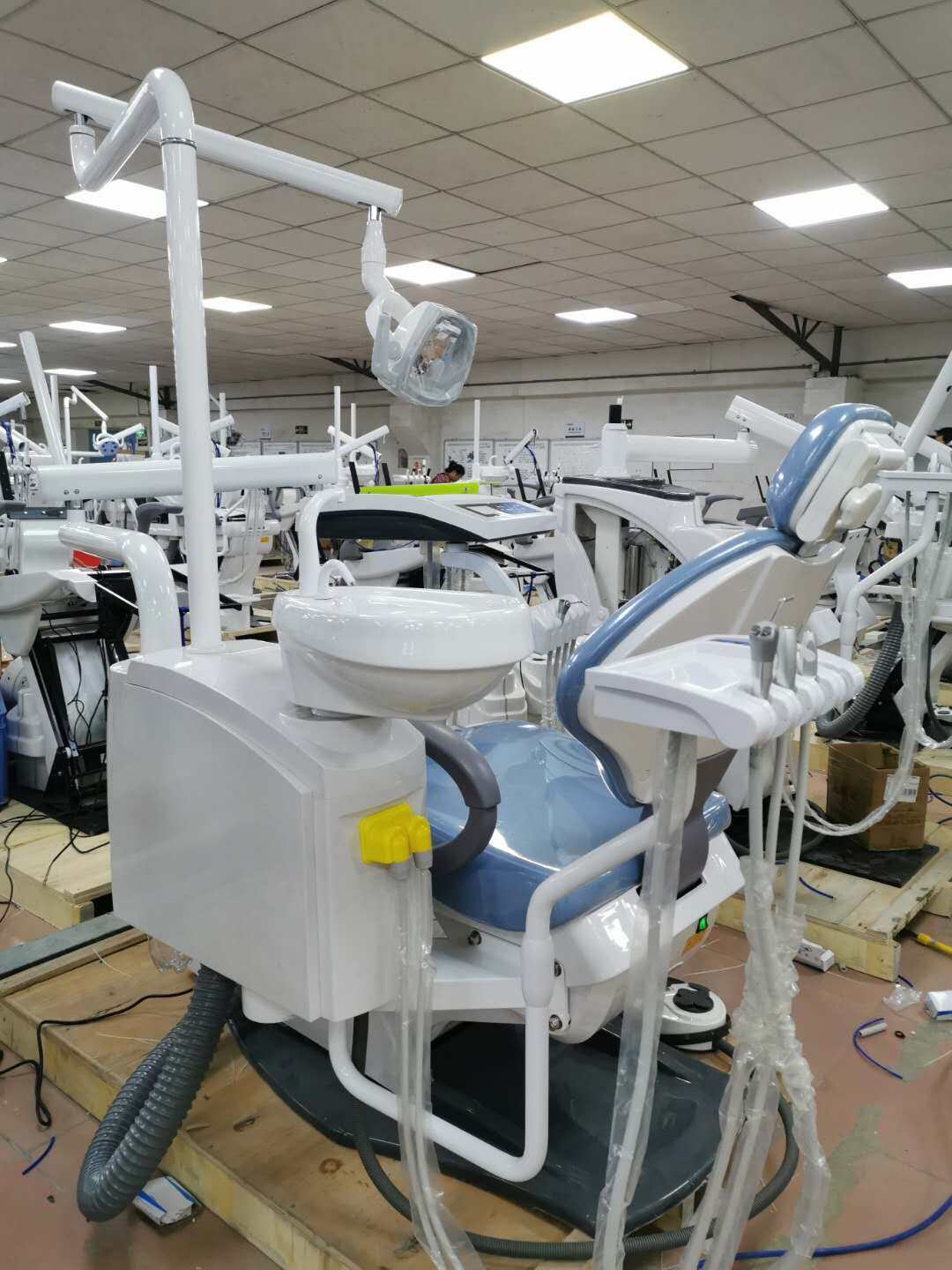

17. Complete Production Photos
Standard Specification:
4 hole high-speed handpiece tubing with connector 2 sets;
4 hole low-speed handpiece tubing with connector 1 set;
3-way syringe (cold and hot) 2 piece;
Adjustable headrest 1 set;
Double armrest 1 set;
New design down tray with touch control 1 set;
With autoclavable silicone pad,maximum bearing temperature is 135-degrees 1pcs;
5-posistion for handpiece,syringe and scaler 1set;
Suction and saliva ejector 1 set each;
LED operation lamp with sensor CX-209 1 set;
American style lamp arm 1set;
Build-in model Lcd X-film viewer 1 set;
24V DC motors 1 set;
Assistant tray with touch control 1 set;
Water purified system 1 set;
Water heating system 1 set;
Water bottle 600ml 1 pcs;
Auto water supply and flush cuspidor system 1 set each;
Ceramic cuspidor with 180-degrees rotation 1 set;
Multi-function foot pedal CX-106 1 set;
Dentist stool 1set;
PU cushion 1 set;
Solenoid valve 2 pcs;
ABS plastic covers 1 set;
PVC air and water tubes 1set;
All kinds of copper valves 1set;
Chair without safety system;
Chair without linked movement chair frame;
Packing size: 142*100*120CM;
Gross Weight: 260KG.
